Atom LED

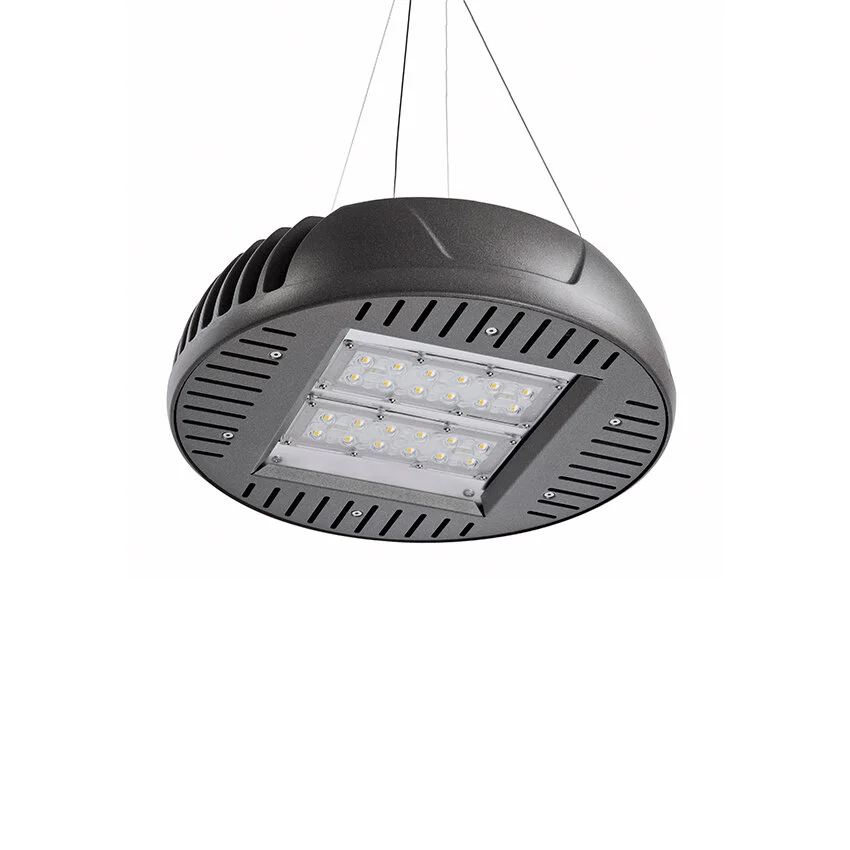

A high powered surface mounted or suspended high bay LED luminaire with deep cooling fins for excellent thermal management.
Features
– Non-corrosive
– Surge protection up to 6Kv
– NTC thermal sensor
– Long rated LED life: >77,000hrs (L80/B10) (Ta 25˚C)
– Fast plug connector supplied as standard for easy installation
– Optimum colour consistency—3 step MacAdam chromaticity ellipse tolerance
– Excellent heat sink for effective thermal management
– Airtight cable compartment integrated into the main body for excellent electrical and thermal insulation of the driver
IP66 | LED | CLASS I | CE
A high powered surface mounted or suspended high bay LED luminaire with deep cooling fins for excellent thermal management.
Features
– Non-corrosive
– Surge protection up to 6Kv
– NTC thermal sensor
– Long rated LED life: >77,000hrs (L80/B10) (Ta 25˚C)
– Fast plug connector supplied as standard for easy installation
– Optimum colour consistency—3 step MacAdam chromaticity ellipse tolerance
– Excellent heat sink for effective thermal management
– Airtight cable compartment integrated into the main body for excellent electrical and thermal insulation of the driver
IP66 | LED | CLASS I | CE
A high powered surface mounted or suspended high bay LED luminaire with deep cooling fins for excellent thermal management.
Features
– Non-corrosive
– Surge protection up to 6Kv
– NTC thermal sensor
– Long rated LED life: >77,000hrs (L80/B10) (Ta 25˚C)
– Fast plug connector supplied as standard for easy installation
– Optimum colour consistency—3 step MacAdam chromaticity ellipse tolerance
– Excellent heat sink for effective thermal management
– Airtight cable compartment integrated into the main body for excellent electrical and thermal insulation of the driver
IP66 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
LED output: 7380 – 27240lm
Luminaire output: 6515 – 24080lm
Luminaire efficiency: ≥131lm/W
CRI: >80
Material
Body: Die-cast aluminium
Finish: Anthracite grey (RAL 7039)
Diffuser: Methacrylate
Mounting: Surface/ Suspension
Options
Customised outputs on request
Protection grid
3000K/ 5000K
90˚ beam
Tempered glass
| Product Codes |
|---|
| LAMP | COLOUR TEMP | DELIVERED LUMENS | MOUNTING | STANDARD | DALI | EMERGENCY STANDARD | EMERGENCY DALI |
|---|---|---|---|---|---|---|---|
| 45W | 4000K | 6515lm | Surface | 76300101 | 76300103 | 76300191 | 76300193 |
| 92W | 4000K | 12040lm | Surface | 76300201 | 76300203 | 76300291 | 76300293 |
| 138W | 4000K | 18060lm | Surface | 76300301 | 76300303 | 76300391 | 76300393 |
| 184W | 4000K | 24080lm | Surface | 76300401 | 76300403 | 76300491 | 76300493 |
| 45W | 4000K | 6515lm | Suspended | 76300501 | 76300503 | 76300591 | 76300593 |
| 92W | 4000K | 12040lm | Suspended | 76300601 | 76300603 | 76300691 | 76300693 |
| 138W | 4000K | 18060lm | Suspended | 76300701 | 76300703 | 76300791 | 76300793 |
| 184W | 4000K | 24080lm | Suspended | 76300801 | 76300803 | 76300891 | 76300893 |
