Borgo LED
A compact, general purpose, rip-out-resistant wall-mounted luminaire with tamper-proof fixings providing a high impact-resistance.
Features
– High impact resistance: IK10+ / 80 joules
– Anti-graffiti protection
– Non-corrosive
– Compact design
– Optimum colour consistency—3 step MacAdam ellipse tolerance
– Average rated LED life: >72,000hrs (L80/B10)
– Photobiological hazard: RG0
IP65 | IK10 | LED | CLASS I | CE
A compact, general purpose, rip-out-resistant wall-mounted luminaire with tamper-proof fixings providing a high impact-resistance.
Features
– High impact resistance: IK10+ / 80 joules
– Anti-graffiti protection
– Non-corrosive
– Compact design
– Optimum colour consistency—3 step MacAdam ellipse tolerance
– Average rated LED life: >72,000hrs (L80/B10)
– Photobiological hazard: RG0
IP65 | IK10 | LED | CLASS I | CE
A compact, general purpose, rip-out-resistant wall-mounted luminaire with tamper-proof fixings providing a high impact-resistance.
Features
– High impact resistance: IK10+ / 80 joules
– Anti-graffiti protection
– Non-corrosive
– Compact design
– Optimum colour consistency—3 step MacAdam ellipse tolerance
– Average rated LED life: >72,000hrs (L80/B10)
– Photobiological hazard: RG0
IP65 | IK10 | LED | CLASS I | CE
Technical Information |
---|
Performance
Light source: LED

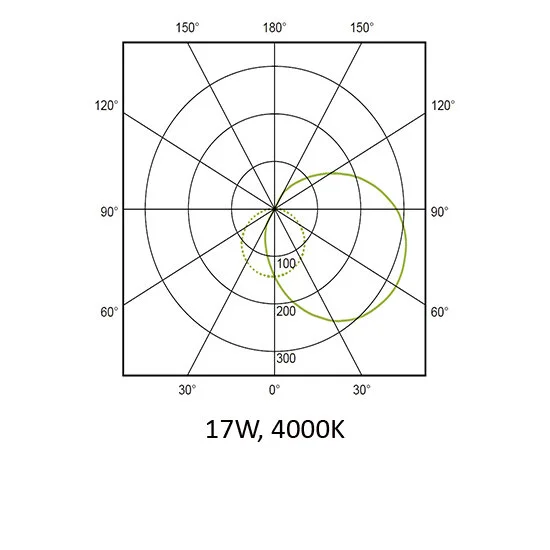

Distribution: Symmetric
Luminaire output: 600 – 1450lm
Luminaire efficiency: ≥77lm/W
CRI: >80
Material
Body: Zinc-plated steel
Finish: Graphite grey
Diffuser: Opal polycarbonate TP(a)
External fixings: M6 stainless steel tamper-proof screws
Wiring: 1 x Ø20.5mm rear side cable entry
Mounting: Surface
Options
White finish (RAL 9003)
316L stainless steel version for marine environment
Product Codes |
---|
LAMP | COLOUR TEMP | DELIVERED LUMENS | STANDARD | DALI | EMERGENCY STANDARD | EMERGENCY DALI |
---|
