Commodore LED

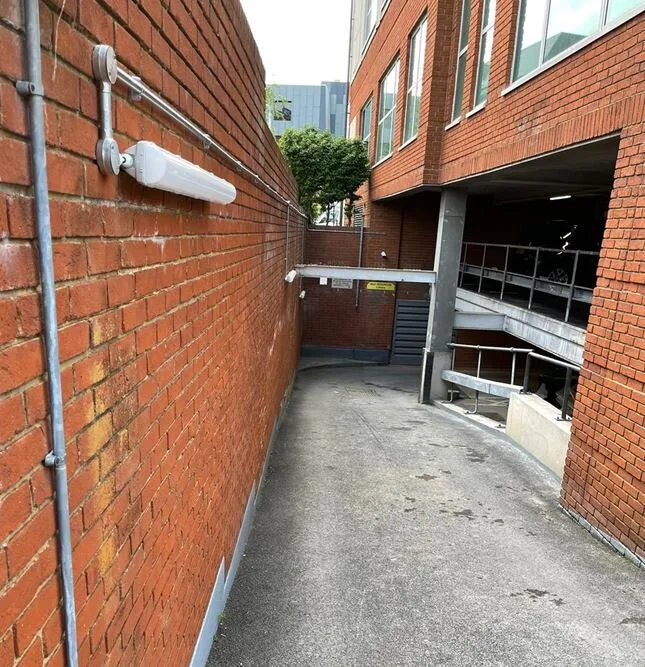

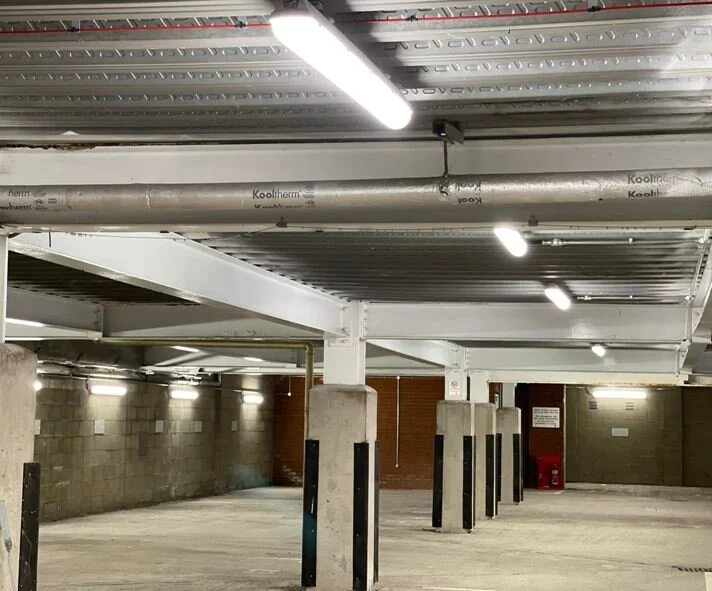

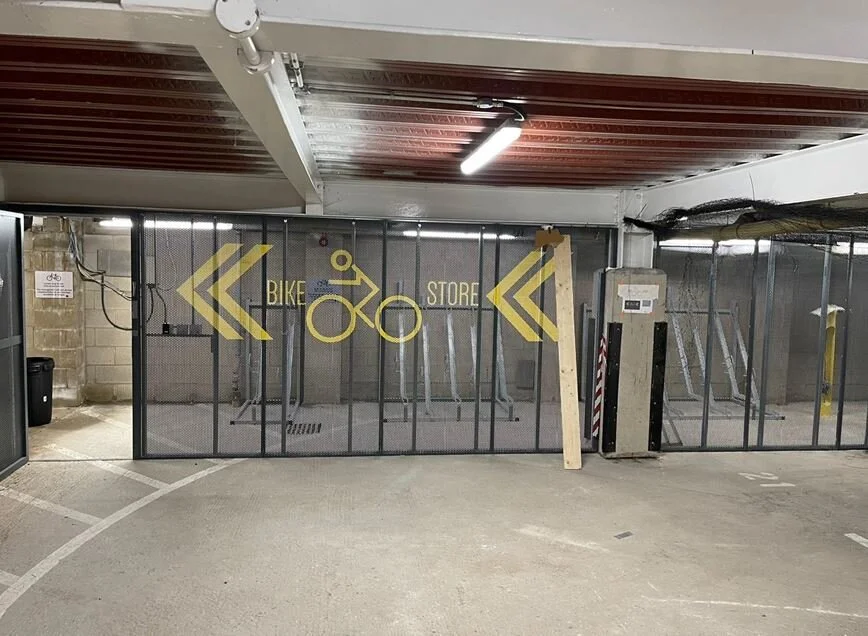

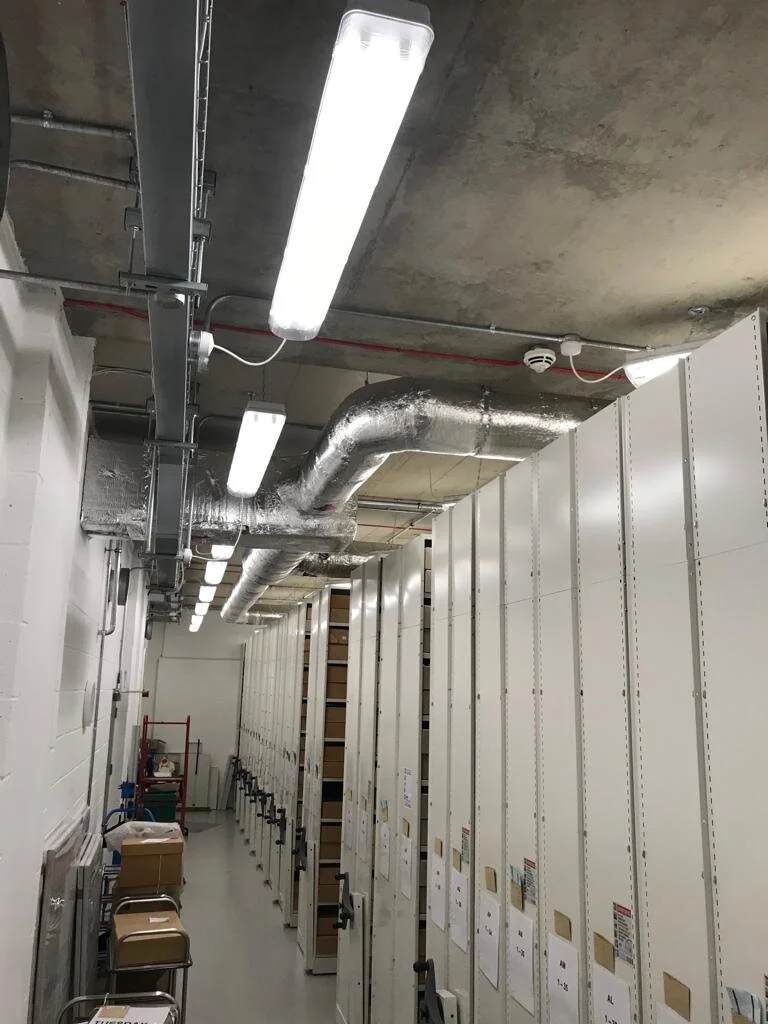

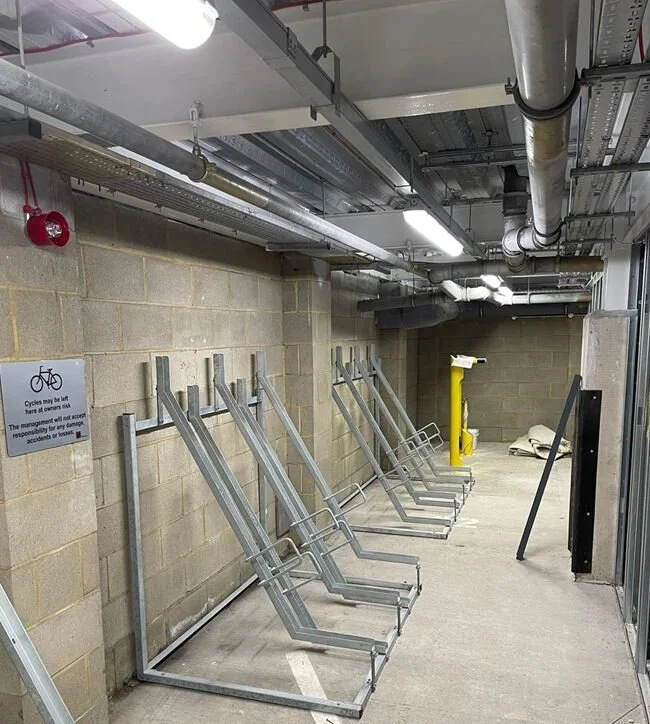

A high performance, impact resistant LED vapour proof incorporating innovative duo-therm technology that extends the life of the LED. Ideally suited to damp and dusty environments, the Commodore is available in various sizes and lumen outputs for maximum design flexibility.
Features
– High luminous efficiency - up to 189lm/W
– Robust, vandal proof design
– Incorporates innovative duo-therm technology that extends the life of the LED
– UV stable - no discolouration or weathering
– Variable mounting/suspension position - Quick and easy installation
– Average rated LED life: >72,000hrs (L80/B10)
– Optimum colour consistency—single bin 3 step MacAdam ellipse tolerance
IP66 | IK10 | LED | CLASS I | CE
A high performance, impact resistant LED vapour proof incorporating innovative duo-therm technology that extends the life of the LED. Ideally suited to damp and dusty environments, the Commodore is available in various sizes and lumen outputs for maximum design flexibility.
Features
– High luminous efficiency - up to 189lm/W
– Robust, vandal proof design
– Incorporates innovative duo-therm technology that extends the life of the LED
– UV stable - no discolouration or weathering
– Variable mounting/suspension position - Quick and easy installation
– Average rated LED life: >72,000hrs (L80/B10)
– Optimum colour consistency—single bin 3 step MacAdam ellipse tolerance
IP66 | IK10 | LED | CLASS I | CE
A high performance, impact resistant LED vapour proof incorporating innovative duo-therm technology that extends the life of the LED. Ideally suited to damp and dusty environments, the Commodore is available in various sizes and lumen outputs for maximum design flexibility.
Features
– High luminous efficiency - up to 189lm/W
– Robust, vandal proof design
– Incorporates innovative duo-therm technology that extends the life of the LED
– UV stable - no discolouration or weathering
– Variable mounting/suspension position - Quick and easy installation
– Average rated LED life: >72,000hrs (L80/B10)
– Optimum colour consistency—single bin 3 step MacAdam ellipse tolerance
IP66 | IK10 | LED | CLASS I | CE
Technical Information |
---|
Performance
Light source: LED
Luminaire output: 2065 – 14765lm
Luminaire efficiency: ≥162lm/W
CRI: >80
Material
Body: Polycarbonate
Finish: Grey
Diffuser: Opal polycarbonate TP(a) with nano optics for glare control
External fixings: Reinforced fibreglass clips
Mounting: Surface / Suspension
Options
Stainless steel clips
2-step MacAdam ellipse tolerance, CRI 90
PIR for enhanced energy savings
Suspension kit
Internal fuse and LS0H cable
Through wiring
Product Codes |
---|
LAMP | COLOUR TEMP | DELIVERED LUMENS | DIMENSION | STANDARD | DALI | EMERGENCY STANDARD | EMERGENCY DALI | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
12W | 3000K | 1970lm | 615 x 98 | 21312001 | 21312003 | 21312091 | 21312093 | |||||
12W | 4000K | 2065lm | 615 x 98 | 21312101 | 21312103 | 21312191 | 21312193 | |||||
16W | 3000K | 2695lm | 615 x 98 | 21312201 | 21312203 | 21312291 | 21312293 | |||||
16W | 4000K | 2825lm | 615 x 98 | 21312301 | 21312303 | 21312391 | 21312393 | |||||
28W | 3000K | 4690lm | 615 x 145 | 21312401 | 21312403 | 21312491 | 21312493 | |||||
28W | 4000K | 4915lm | 615 x 145 | 21312501 | 21312503 | 21312591 | 21312593 | |||||
31W | 3000K | 5635lm | 615 x 145 | 21312601 | 21312603 | 21312691 | 21312693 | |||||
31W | 4000K | 5910lm | 615 x 145 | 21312701 | 21312703 | 21312791 | 21312793 | |||||
24W | 3000K | 3940lm | 1175 x 98 | 21312801 | 21312803 | 21312891 | 21312893 | |||||
24W | 4000K | 4130lm | 1175 x 98 | 21312901 | 21312903 | 21312991 | 21312993 | |||||
27W | 3000K | 4855lm | 1175 x 98 | 21313001 | 21313003 | 21313091 | 21313093 | |||||
27W | 4000K | 5090lm | 1175 x 98 | 21313101 | 21313103 | 21313191 | 21313193 | |||||
33W | 3000K | 5395lm | 1175 x 98 | 21313201 | 21313203 | 21313291 | 21313293 | |||||
33W | 4000K | 5655lm | 1175 x 98 | 21313301 | 21313303 | 21313391 | 21313393 | |||||
37W | 3000K | 6010lm | 1175 x 98 | 21313401 | 21313403 | 21313491 | 21313493 | |||||
37W | 4000K | 6300lm | 1175 x 98 | 21313501 | 21313503 | 21313591 | 21313593 | |||||
44W | 3000K | 8205lm | 1175 x 145 | 21313601 | 21313603 | 21313691 | 21313693 | |||||
44W | 4000K | 8600lm | 1175 x 145 | 21313701 | 21313703 | 21313791 | 21313793 | |||||
55W | 3000K | 9375lm | 1175 x 145 | 21313801 | 21313803 | 21313891 | 21313893 | |||||
55W | 4000K | 9830lm | 1175 x 145 | 21313901 | 21313903 | 21313991 | 21313993 | |||||
62W | 3000K | 11265lm | 1175 x 145 | 21314001 | 21314003 | 21314091 | 21314093 | |||||
62W | 4000K | 11815lm | 1175 x 145 | 21314101 | 21314103 | 21314191 | 21314193 | |||||
40W | 3000K | 6740lm | 1455 x 98 | 21314201 | 21314203 | 21314291 | 21314293 | |||||
40W | 4000K | 7070lm | 1455 x 98 | 21314301 | 21314303 | 21314391 | 21314393 | |||||
57W | 3000K | 9890lm | 1455 x 98 | 21314401 | 21314403 | 21314491 | 21314493 | |||||
57W | 4000K | 10370lm | 1455 x 98 | 21314501 | 21314503 | 21314591 | 21314593 | |||||
82W | 3000K | 13555lm | 1455 x 98 | 21314601 | 21314603 | 21314691 | 21314693 | |||||
82W | 4000K | 14220lm | 1455 x 98 | 21314701 | 21314703 | 21314791 | 21314793 | |||||
57W | 3000K | 9890lm | 1455 x 145 | 21314801 | 21314803 | 21314891 | 21314893 | |||||
57W | 4000K | 10370lm | 1455 x 145 | 21314901 | 21314903 | 21314991 | 21314993 | |||||
78W | 3000K | 14070lm | 1455 x 145 | 21315001 | 21315003 | 21315091 | 21315093 | |||||
78W | 4000K | 14765lm | 1455 x 145 | 21315101 | 21315103 | 21315191 | 21315193 |
