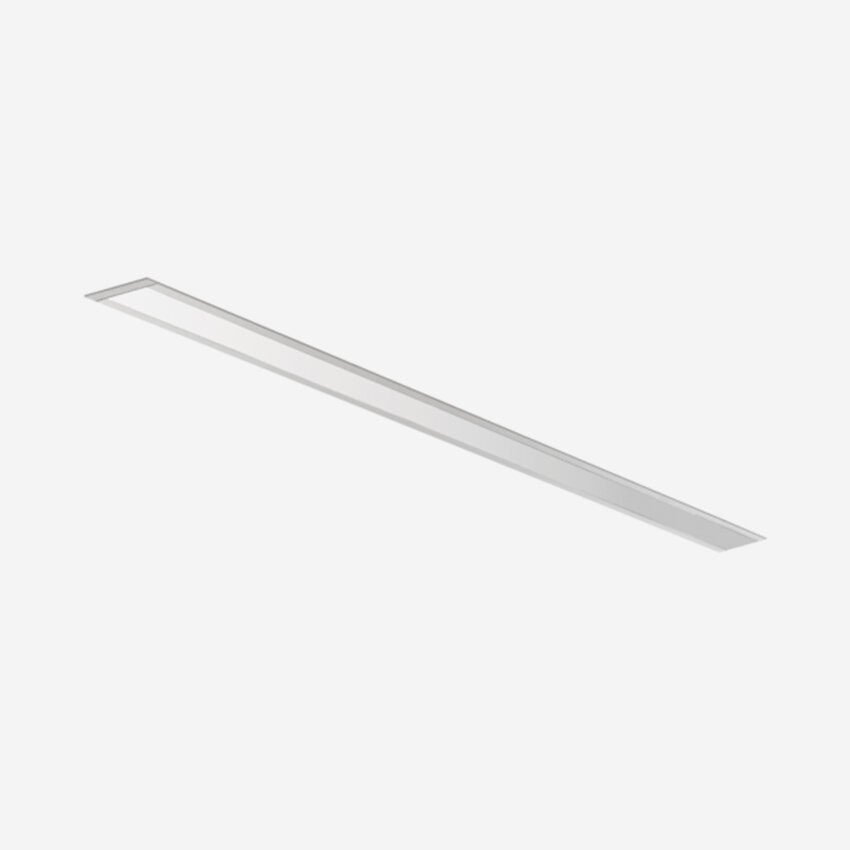

Golf 57 Recessed LED
An elegant architectural recessed aluminium profile LED luminaire designed for individual or continuous mounting. Available in multiple lumen outputs, lengths, RAL finishes and with infill sections and PIR, this range truly offers design flexibility.
Ideal for corridors, offices, retail and educational environments.
Features
– Individual or continuous mounting
– Average rated LED life: >54,000 hours (L90/B10)
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
– Versatile layout configurations
– Multiple lengths available with the option of infill sections and PIR sensors
IP20 | LED | CLASS I | CE
An elegant architectural recessed aluminium profile LED luminaire designed for individual or continuous mounting. Available in multiple lumen outputs, lengths, RAL finishes and with infill sections and PIR, this range truly offers design flexibility.
Ideal for corridors, offices, retail and educational environments.
Features
– Individual or continuous mounting
– Average rated LED life: >54,000 hours (L90/B10)
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
– Versatile layout configurations
– Multiple lengths available with the option of infill sections and PIR sensors
IP20 | LED | CLASS I | CE
An elegant architectural recessed aluminium profile LED luminaire designed for individual or continuous mounting. Available in multiple lumen outputs, lengths, RAL finishes and with infill sections and PIR, this range truly offers design flexibility.
Ideal for corridors, offices, retail and educational environments.
Features
– Individual or continuous mounting
– Average rated LED life: >54,000 hours (L90/B10)
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
– Versatile layout configurations
– Multiple lengths available with the option of infill sections and PIR sensors
IP20 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
Luminaire output: 780 – 5500lm
CRI: 89
Material
Body: Extruded aluminium profile
Finish: Grey/ White/ Black
Diffuser: Opal polycarbonate
Mounting: Recessed
Options
3hr emergency
Tuneable white 2700K-6500K
3000K
Asymmetric version
Parabolic louvre or microprism diffuser
Linear, T-joints, X-joints, end caps and suspension kits
2-step MacAdam, CRI:90
Illuminated corner (585 x 585 x 17mm)
Internal fuse and LS0H cable
| Product Codes |
|---|
| LAMP | COLOUR TEMP | DELIVERED LUMENS | LENGTH | STANDARD GREY | STANDARD WHITE | STANDARD BLACK | DALI GREY | DALI WHITE | DALI BLACK |
|---|---|---|---|---|---|---|---|---|---|
| 8W | 4000K | 780lm | 545 | 62250101 | 62258101 | 62266101 | 62250103 | 62258103 | 62266103 |
| 11W | 4000K | 975lm | 545 | 62250301 | 62258301 | 62266301 | 62250303 | 62258303 | 62266303 |
| 12W | 4000K | 1144lm | 545 | 62250501 | 62258501 | 62266501 | 62250503 | 62258503 | 62266503 |
| 13W | 4000K | 1300lm | 545 | 62250701 | 62258701 | 62266701 | 62250703 | 62258703 | 62266703 |
| 11W | 4000K | 1057lm | 745 | 62250901 | 62258901 | 62266901 | 62250903 | 62258903 | 62266903 |
| 14W | 4000K | 1322lm | 745 | 62251101 | 62259101 | 62267101 | 62251103 | 62259103 | 62267103 |
| 16W | 4000K | 1551lm | 745 | 62251301 | 62259301 | 62267301 | 62251303 | 62259303 | 62267303 |
| 19W | 4000K | 1762lm | 745 | 62251501 | 62259501 | 62267501 | 62251503 | 62259503 | 62267503 |
| 12W | 4000K | 1196lm | 840 | 62251701 | 62259701 | 62267701 | 62251703 | 62259703 | 62267703 |
| 15W | 4000K | 1495lm | 840 | 62251901 | 62259901 | 62267901 | 62251903 | 62259903 | 62267903 |
| 18W | 4000K | 1754lm | 840 | 62252101 | 62260101 | 62268101 | 62252103 | 62260103 | 62268103 |
| 20W | 4000K | 1993lm | 840 | 62252301 | 62260301 | 62268301 | 62252303 | 62260303 | 62268303 |
| 14W | 4000K | 1626lm | 1085 | 62252501 | 62260501 | 62268501 | 62252503 | 62260503 | 62268503 |
| 19W | 4000K | 2033lm | 1085 | 62252701 | 62260701 | 62268701 | 62252703 | 62260703 | 62268703 |
| 22W | 4000K | 2385lm | 1085 | 62252901 | 62260901 | 62268901 | 62252903 | 62260903 | 62268903 |
| 25W | 4000K | 2710lm | 1085 | 62253101 | 62261101 | 62269101 | 62253103 | 62261103 | 62269103 |
| 16W | 4000K | 1765lm | 1185 | 62253301 | 62261301 | 62269301 | 62253303 | 62261303 | 62269303 |
| 20W | 4000K | 2206lm | 1185 | 62253501 | 62261501 | 62269501 | 62253503 | 62261503 | 62269503 |
| 24W | 4000K | 2588lm | 1185 | 62253701 | 62261701 | 62269701 | 62253703 | 62261703 | 62269703 |
| 27W | 4000K | 2941lm | 1185 | 62253901 | 62261901 | 62269901 | 62253903 | 62261903 | 62269903 |
| 18W | 4000K | 2042lm | 1380 | 62254101 | 62262101 | 62270101 | 62254103 | 62262103 | 62270103 |
| 23W | 4000K | 2553lm | 1380 | 62254301 | 62262301 | 62270301 | 62254303 | 62262303 | 62270303 |
| 27W | 4000K | 2995lm | 1380 | 62254501 | 62262501 | 62270501 | 62254503 | 62262503 | 62270503 |
| 31W | 4000K | 3403lm | 1380 | 62254701 | 62262701 | 62270701 | 62254703 | 62262703 | 62270703 |
| 19W | 4000K | 2181lm | 1485 | 62254901 | 62262901 | 62270901 | 62254903 | 62262903 | 62270903 |
| 24W | 4000K | 2726lm | 1485 | 62255101 | 62263101 | 62271101 | 62255103 | 62263103 | 62271103 |
| 29W | 4000K | 3198lm | 1485 | 62255301 | 62263301 | 62271301 | 62255303 | 62263303 | 62271303 |
| 33W | 4000K | 3635lm | 1485 | 62255501 | 62263501 | 62271501 | 62255503 | 62263503 | 62271503 |
| 21W | 4000K | 2472lm | 1625 | 62255701 | 62263701 | 62271701 | 62255703 | 62263703 | 62271703 |
| 26W | 4000K | 3090lm | 1625 | 62255901 | 62263901 | 62271901 | 62255903 | 62263903 | 62271903 |
| 31W | 4000K | 3626lm | 1625 | 62256101 | 62264101 | 62272101 | 62256103 | 62264103 | 62272103 |
| 36W | 4000K | 4120lm | 1625 | 62256301 | 62264301 | 62272301 | 62256303 | 62264303 | 62272303 |
| 27W | 4000K | 3300lm | 2170 | 62256501 | 62264501 | 62272501 | 62256503 | 62264503 | 62272503 |
| 34W | 4000K | 4125lm | 2170 | 62256701 | 62264701 | 62272701 | 62256703 | 62264703 | 62272703 |
| 41W | 4000K | 4840lm | 2170 | 62256901 | 62264901 | 62272901 | 62256903 | 62264903 | 62272903 |
| 47W | 4000K | 5500lm | 2170 | 62257101 | 62265101 | 62273101 | 62257103 | 62265103 | 62273103 |
