Apis LED

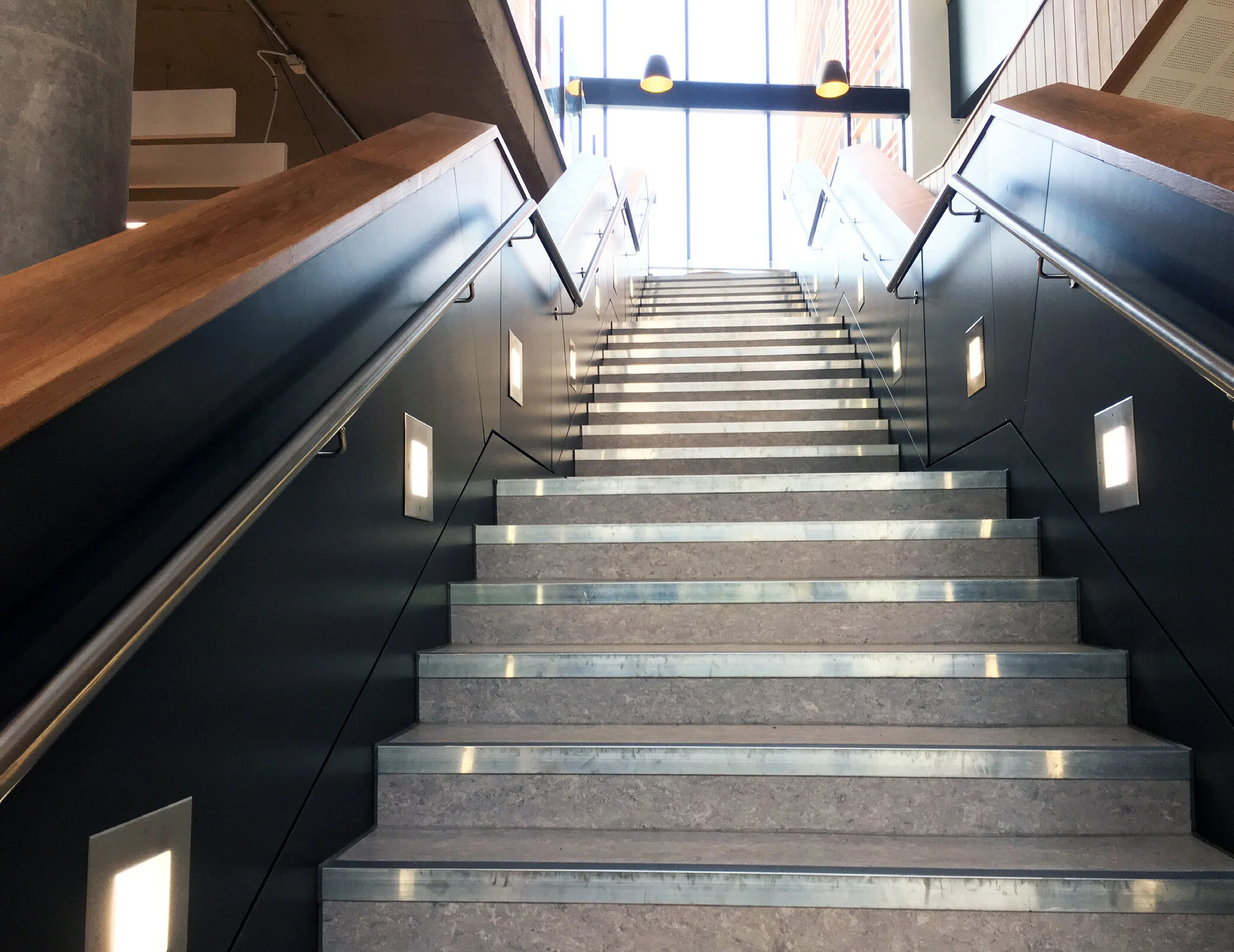

A decorative recessed wall mounted LED luminaire with an excellent light distribution.
Suitable for interior or exterior applications such as pathways, entrances, decking, and stairwells.
Features
– High resistance to UV and oxidation
– Even light distribution – no spotting
– Average rated LED life >50,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
IP67 | IK10 | LED | CLASS I | CE
A decorative recessed wall mounted LED luminaire with an excellent light distribution.
Suitable for interior or exterior applications such as pathways, entrances, decking, and stairwells.
Features
– High resistance to UV and oxidation
– Even light distribution – no spotting
– Average rated LED life >50,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
IP67 | IK10 | LED | CLASS I | CE
A decorative recessed wall mounted LED luminaire with an excellent light distribution.
Suitable for interior or exterior applications such as pathways, entrances, decking, and stairwells.
Features
– High resistance to UV and oxidation
– Even light distribution – no spotting
– Average rated LED life >50,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
IP67 | IK10 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
LED output: 400 – 2140lm
Luminaire output: 170 – 911lm
CRI: 80
Material
Body: Die-cast aluminium EN AB 44100
Finish: 316L stainless steel
Diffuser: 8mm soda lime tempered glass with sealing gasket
External fixings: Stainless steel A4-70 treated with water repellent lubricating solution
Mounting: Recessed wall
Options
Polypropylene rough-in housing, IP68 connectors
Second cable entry
Colour filters
| Product Codes |
|---|
| LAMP | COLOUR TEMP | DELIVERED LUMENS | DIMENSIONS | STANDARD |
|---|---|---|---|---|
| 4.3W | 3000K | 170lm | 90 x 90 x 135 | 76000101 |
| 4.3W | 4000K | 170lm | 90 x 90 x 135 | 76000201 |
| 7W | 3000K | 445lm | 135 x 135 x 115 | 76000301 |
| 7W | 4000K | 460lm | 135 x 135 x 115 | 76000401 |
| 13W | 3000K | 869lm | 245 x 245 x 145 | 76000501 |
| 13W | 4000K | 912lm | 245 x 245 x 145 | 76000601 |
