EMG Curve LED

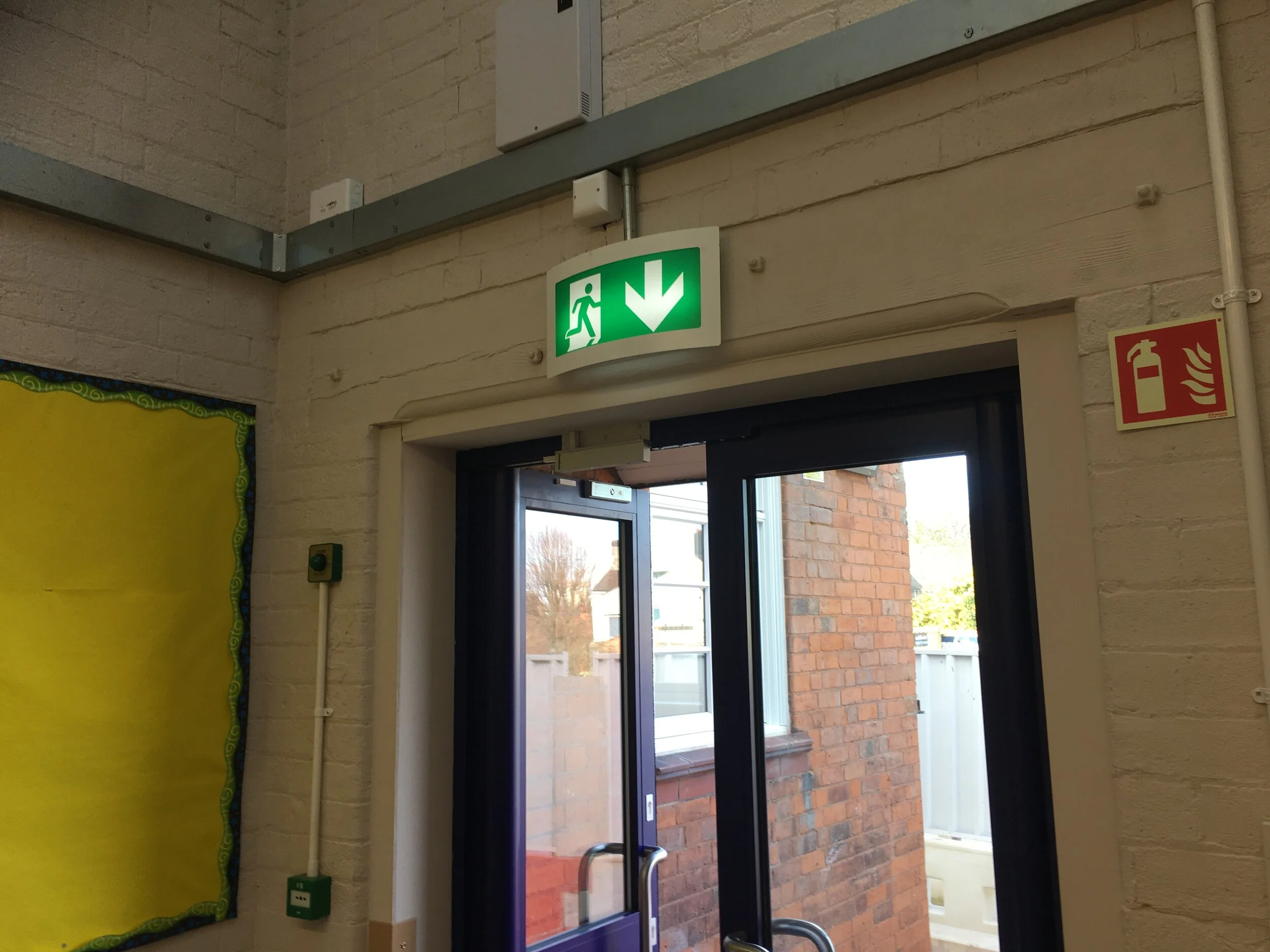

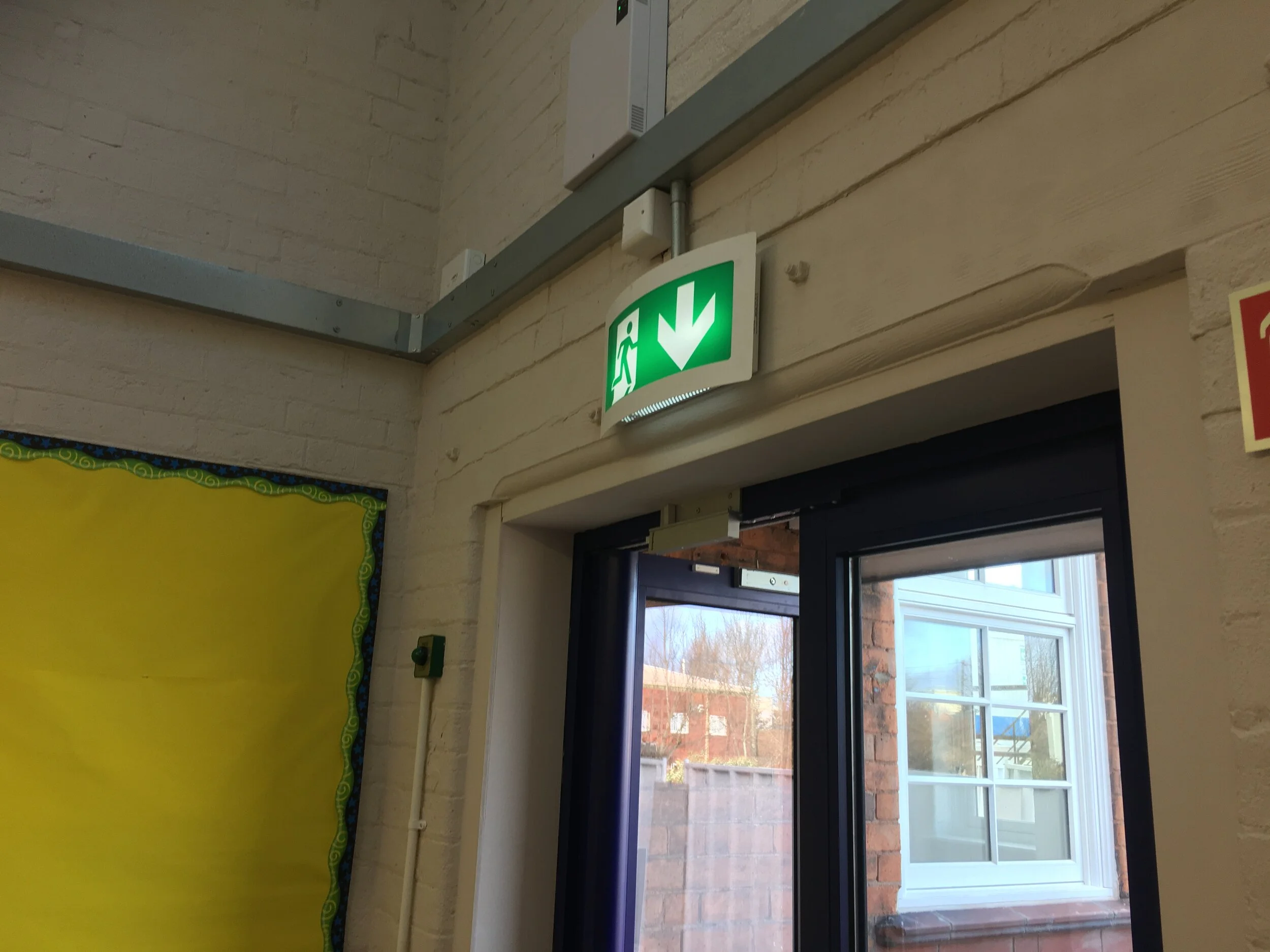

An ICEL compliant, self-contained, stylish convex wall-mounted escape route sign with a perforated downlight.
Features
– 3hr maintained or non-maintained battery power operation after mains power failure
– Self-testing – continuously tests battery voltage and operation of the LEDs
– Downlight facility
IP20 | LED | CLASS I | CE
An ICEL compliant, self-contained, stylish convex wall-mounted escape route sign with a perforated downlight.
Features
– 3hr maintained or non-maintained battery power operation after mains power failure
– Self-testing – continuously tests battery voltage and operation of the LEDs
– Downlight facility
IP20 | LED | CLASS I | CE
An ICEL compliant, self-contained, stylish convex wall-mounted escape route sign with a perforated downlight.
Features
– 3hr maintained or non-maintained battery power operation after mains power failure
– Self-testing – continuously tests battery voltage and operation of the LEDs
– Downlight facility
IP20 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
Battery: 3.6V 3Ah Ni-Cd
Luminaire output: 150lm
Viewing distance: 30m
Material
Base: Sheet steel, stove enamelled
Finish: Zintec coated white
Legend: Self-extinguishing polycarbonate. Arrow down supplied as standard
Cable knockouts: 20mm rear
Mounting: Surface
Options
DALI addressable
Brass or chrome finish on request
ISO legends available
24V, 50V or 110V ACDC option
Central battery functionality
| Product Codes |
|---|
| CODE | |
|---|---|
| 4W White 3hr maintained | 80701105 |
| Mains only / 230 AC Static driver | 80701505 |
| ACCESSORIES | |
| Legend arrow left | 90180701 |
| Legend arrow right | 90180702 |
| Downloads |
|---|
