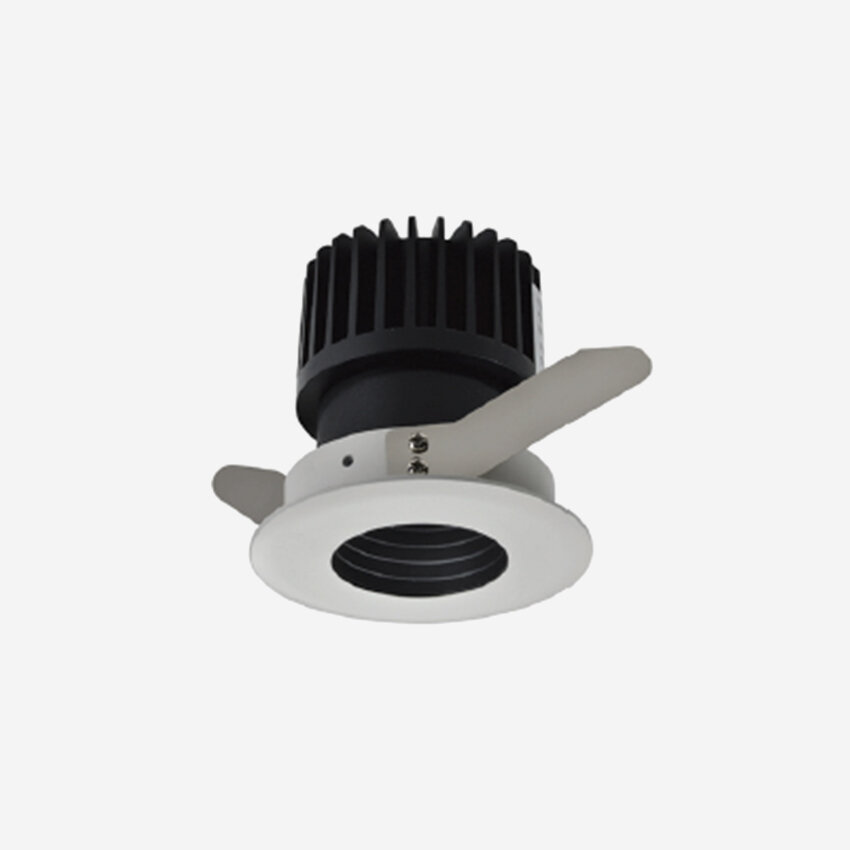

Fox LED
A small, fixed or adjustable, low glare COB LED downlight with a black baffle.
Features
– Deeply positioned light source with black baffle for minimal glare and high visual comfort
– Available in a fixed or adjustable version with a white or black finish to suit different environments
– Adjustable version has a 25 degree tilt
– Excellent heat sink for optimum heat dissipation
– Long average LED life: >50,000hrs (L80/B10)
– Supplied with quick connector and fly leads for easy installation and maintenance
IP20 | LED | CLASS I | CE
A small, fixed or adjustable, low glare COB LED downlight with a black baffle.
Features
– Deeply positioned light source with black baffle for minimal glare and high visual comfort
– Available in a fixed or adjustable version with a white or black finish to suit different environments
– Adjustable version has a 25 degree tilt
– Excellent heat sink for optimum heat dissipation
– Long average LED life: >50,000hrs (L80/B10)
– Supplied with quick connector and fly leads for easy installation and maintenance
IP20 | LED | CLASS I | CE
A small, fixed or adjustable, low glare COB LED downlight with a black baffle.
Features
– Deeply positioned light source with black baffle for minimal glare and high visual comfort
– Available in a fixed or adjustable version with a white or black finish to suit different environments
– Adjustable version has a 25 degree tilt
– Excellent heat sink for optimum heat dissipation
– Long average LED life: >50,000hrs (L80/B10)
– Supplied with quick connector and fly leads for easy installation and maintenance
IP20 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED COB
Luminaire output: 550 – 1265lm
Luminaire efficiency: ≥80lm/W
CRI: 90
Beam angle: 15°/ 24°/ 36°/ 50°
UGR: 12
Material
Body: Die-cast aluminium
Finish: White/ Black
Diffuser: Tempered glass (fixed)
Mounting: Recessed
Options
Fixed or adjustable
3hr emergency
DALI
| Product Codes |
|---|
| LAMP | COLOUR TEMP | DELIVERED LUMENS | BEAM | FIXED WHITE | FIXED BLACK | ADJUSTABLE WHITE | ADJUSTABLE BLACK |
|---|---|---|---|---|---|---|---|
| 7W | 2700K | 550lm | 15° | 32200101 | 32203701 | 32207301 | 32210901 |
| 7W | 3000K | 574lm | 15° | 32200201 | 32203801 | 32207401 | 32211001 |
| 7W | 4000K | 588lm | 15° | 32200301 | 32203901 | 32207501 | 32211101 |
| 7W | 2700K | 550lm | 24° | 32200401 | 32204001 | 32207601 | 32211201 |
| 7W | 3000K | 574lm | 24° | 32200501 | 32204101 | 32207701 | 32211301 |
| 7W | 4000K | 588lm | 24° | 32200601 | 32204201 | 32207801 | 32211401 |
| 7W | 2700K | 550lm | 36° | 32200701 | 32204301 | 32207901 | 32211501 |
| 7W | 3000K | 574lm | 36° | 32200801 | 32204401 | 32208001 | 32211601 |
| 7W | 4000K | 588lm | 36° | 32200901 | 32204501 | 32208101 | 32211701 |
| 7W | 2700K | 550lm | 50° | 32201001 | 32204601 | 32208201 | 32211801 |
| 7W | 3000K | 574lm | 50° | 32201101 | 32204701 | 32208301 | 32211901 |
| 7W | 4000K | 588lm | 50° | 32201201 | 32204801 | 32208401 | 32212001 |
| 10W | 2700K | 800lm | 15° | 32201301 | 32204901 | 32208501 | 32212101 |
| 10W | 3000K | 820lm | 15° | 32201401 | 32205001 | 32208601 | 32212201 |
| 10W | 4000K | 840lm | 15° | 32201501 | 32205101 | 32208701 | 32212301 |
| 10W | 2700K | 800lm | 24° | 32201601 | 32205201 | 32208801 | 32212401 |
| 10W | 3000K | 820lm | 24° | 32201701 | 32205301 | 32208901 | 32212501 |
| 10W | 4000K | 840lm | 24° | 32201801 | 32205401 | 32209001 | 32212601 |
| 10W | 2700K | 800lm | 36° | 32201901 | 32205501 | 32209101 | 32212701 |
| 10W | 3000K | 820lm | 36° | 32202001 | 32205601 | 32209201 | 32212801 |
| 10W | 4000K | 840lm | 36° | 32202101 | 32205701 | 32209301 | 32212901 |
| 10W | 2700K | 800lm | 50° | 32202201 | 32205801 | 32209401 | 32213001 |
| 10W | 3000K | 820lm | 50° | 32202301 | 32205901 | 32209501 | 32213101 |
| 10W | 4000K | 840lm | 50° | 32202401 | 32206001 | 32209601 | 32213201 |
| 15W | 2700K | 1200lm | 15° | 32202501 | 32206101 | 32209701 | 32213301 |
| 15W | 3000K | 1230lm | 15° | 32202601 | 32206201 | 32209801 | 32213401 |
| 15W | 4000K | 1265lm | 15° | 32202701 | 32206301 | 32209901 | 32213501 |
| 15W | 2700K | 1200lm | 24° | 32202801 | 32206401 | 32210001 | 32213601 |
| 15W | 3000K | 1230lm | 24° | 32202901 | 32206501 | 32210101 | 32213701 |
| 15W | 4000K | 1265lm | 24° | 32203001 | 32206601 | 32210201 | 32213801 |
| 15W | 2700K | 1200lm | 36° | 32203101 | 32206701 | 32210301 | 32213901 |
| 15W | 3000K | 1230lm | 36° | 32203201 | 32206801 | 32210401 | 32214001 |
| 15W | 4000K | 1265lm | 36° | 32203301 | 32206901 | 32210501 | 32214101 |
| 15W | 2700K | 1200lm | 50° | 32203401 | 32207001 | 32210601 | 32214201 |
| 15W | 3000K | 1230lm | 50° | 32203501 | 32207101 | 32210701 | 32214301 |
| 15W | 4000K | 1265lm | 50° | 32203601 | 32207201 | 32210801 | 32214401 |
