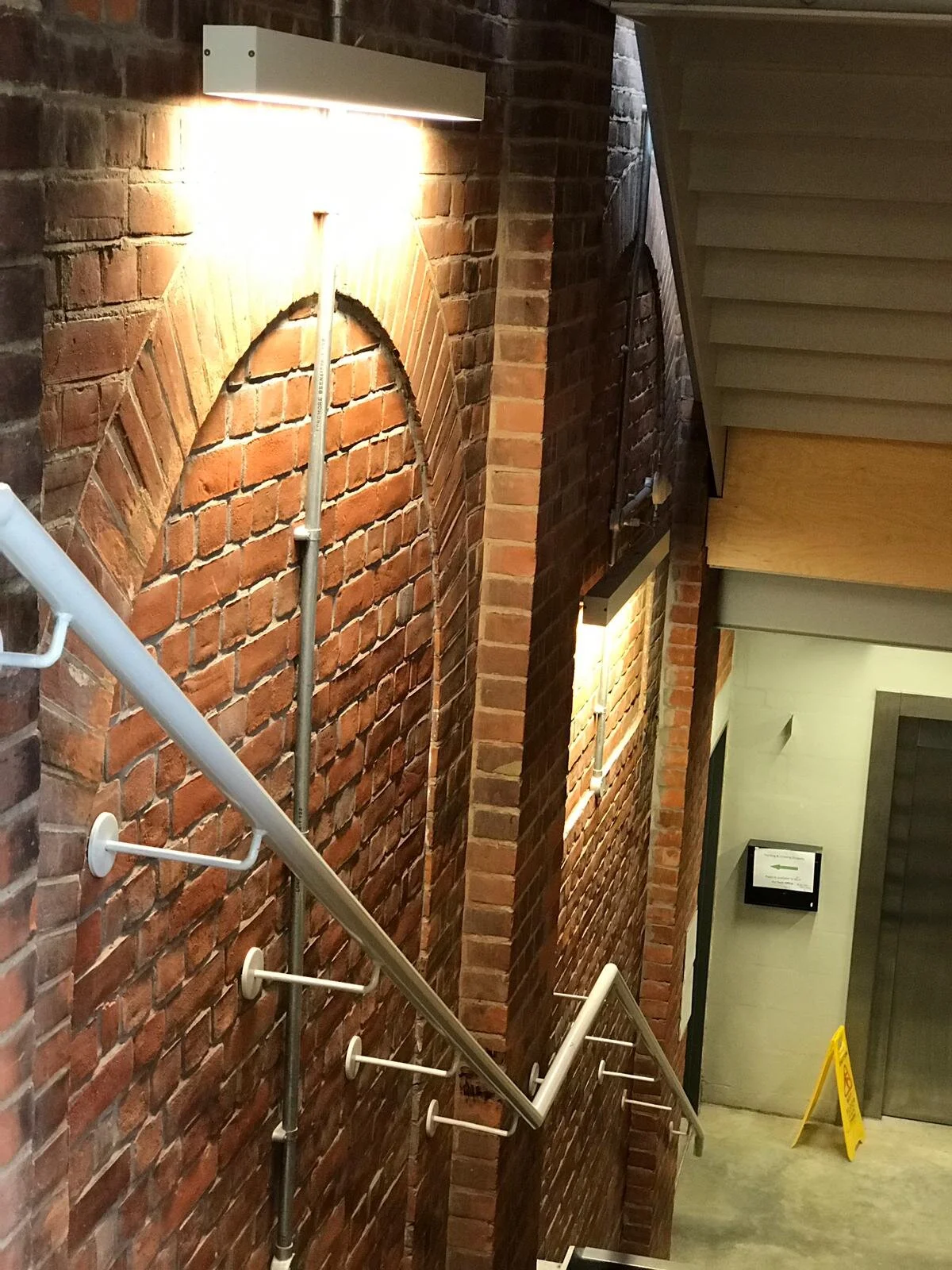

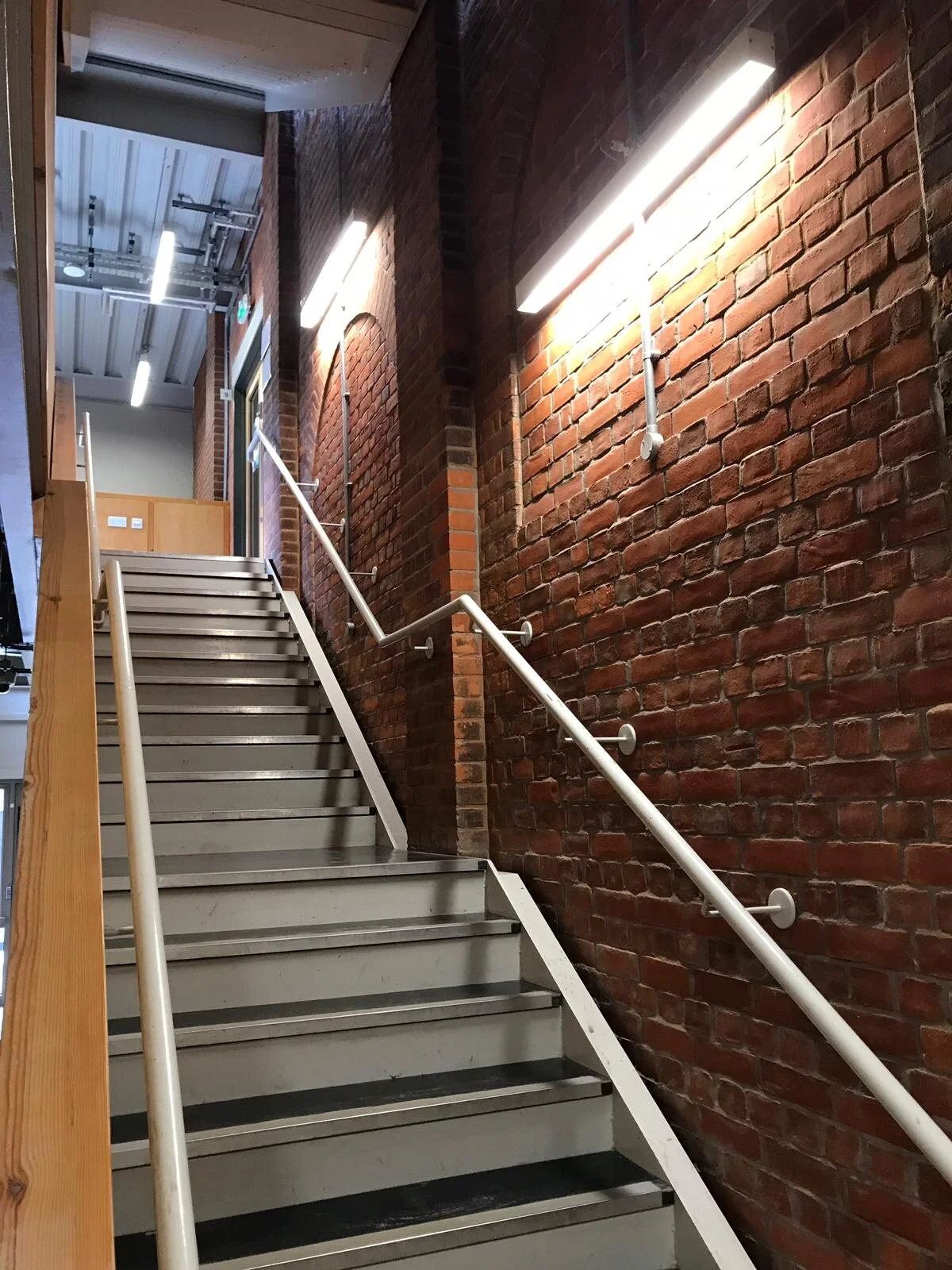

Golf 57 Wall LED
An elegant, architectural, aluminium profile LED luminaire providing direct or direct and indirect illumination, which is designed to complement the Golf 57 LED range of luminaires.
Features
– Stunning, decorative design
– Complements the Golf 57 LED surface/suspended/recessed/ track products
– Average rated LED life: 54,000hrs – (L90/B10) – maintenance free
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
IP20 | LED | CLASS I | F MARK | CE
An elegant, architectural, aluminium profile LED luminaire providing direct or direct and indirect illumination, which is designed to complement the Golf 57 LED range of luminaires.
Features
– Stunning, decorative design
– Complements the Golf 57 LED surface/suspended/recessed/ track products
– Average rated LED life: 54,000hrs – (L90/B10) – maintenance free
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
IP20 | LED | CLASS I | F MARK | CE
An elegant, architectural, aluminium profile LED luminaire providing direct or direct and indirect illumination, which is designed to complement the Golf 57 LED range of luminaires.
Features
– Stunning, decorative design
– Complements the Golf 57 LED surface/suspended/recessed/ track products
– Average rated LED life: 54,000hrs – (L90/B10) – maintenance free
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
IP20 | LED | CLASS I | F MARK | CE
| Technical Information |
|---|
Performance
Light source: LED
Emission: Direct/ Direct-Indirect
Luminaire output: 1129 – 1965lm (Dir)/ 2503 – 2774lm (DI-IN)
CRI: > 80
Material
Body: Extruded aluminium profile
Finish: Grey/ White/ Black
Diffuser: Opal polycarbonate
Mounting: Wall bracket supplied
Options
3hr emergency (840mm length only)
Other RAL finishes and lengths available
Lower output versions on request
2-step MacAdam ellipse tolerance
Longer lengths available up to 2170mm
Internal fuse and LS0H cables
| Product Codes |
|---|
| LAMP | COLOUR TEMP | DELIVERED LUMENS | LENGTH | EMISSION | GREY | WHITE | BLACK |
|---|---|---|---|---|---|---|---|
| 13W | 3000K | 1129lm | 545 | Direct | 65000301 | 65003901 | 65007501 |
| 13W | 4000K | 1139lm | 545 | Direct | 65000401 | 65004001 | 65007601 |
| 19W | 3000K | 1684lm | 745 | Direct | 65000701 | 65004301 | 65007901 |
| 19W | 4000K | 1734lm | 745 | Direct | 65000701 | 65004401 | 65008001 |
| 20W | 3000K | 1915lm | 840 | Direct | 65001101 | 65004701 | 65008301 |
| 20W | 4000K | 1965lm | 840 | Direct | 65001201 | 65004801 | 65008401 |
| 27W | 3000K | 2764lm | 840 | Direct/Indirect | 65011501 | 65014701 | 65017901 |
| 27W | 4000K | 2774lm | 840 | Direct/Indirect | 65011601 | 65014801 | 65018001 |
| 39W | 3000K | 4132lm | 1085 | Direct/Indirect | 65011901 | 65015101 | 65018301 |
| 39W | 4000K | 4162lm | 1085 | Direct/Indirect | 65012001 | 65015201 | 65018401 |
