Juke LED

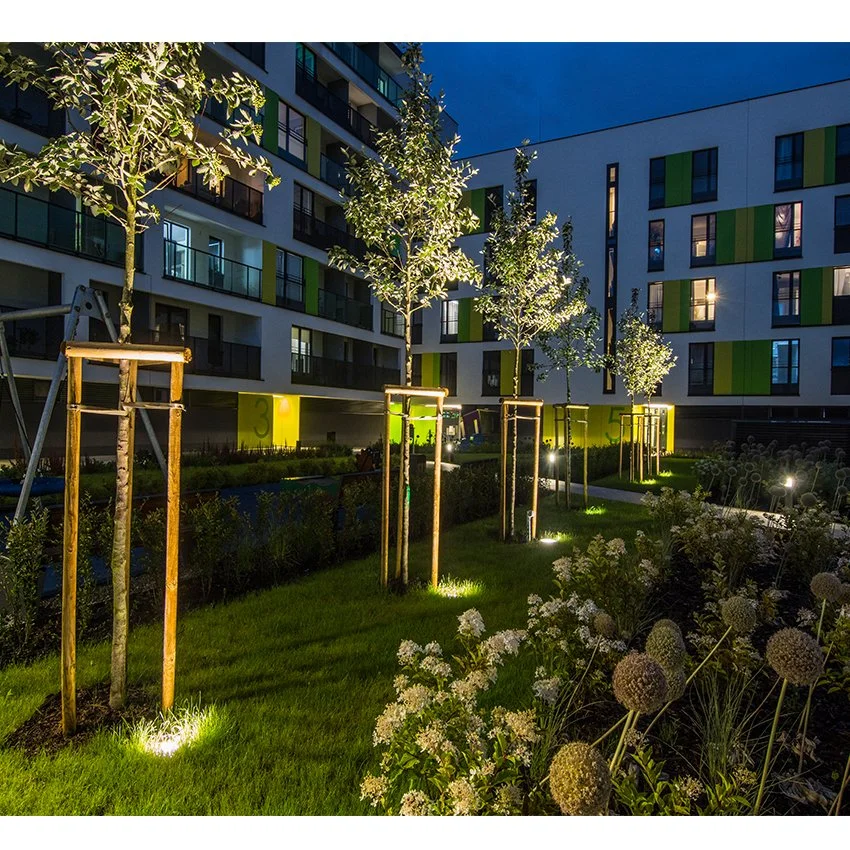

A high-performance buried uplight, recommended for the illumination of architectural and natural features.
Features
– High resistance to oxidation
– Excellent thermal management
– Average rated LED life: >68,000hrs (L90/B10)
– Optimum colour consistency – 2 step MacAdam ellipse tolerance
– 2000Kg static load
IP67 | IK10 | LED | CLASS I | CE
A high-performance buried uplight, recommended for the illumination of architectural and natural features.
Features
– High resistance to oxidation
– Excellent thermal management
– Average rated LED life: >68,000hrs (L90/B10)
– Optimum colour consistency – 2 step MacAdam ellipse tolerance
– 2000Kg static load
IP67 | IK10 | LED | CLASS I | CE
A high-performance buried uplight, recommended for the illumination of architectural and natural features.
Features
– High resistance to oxidation
– Excellent thermal management
– Average rated LED life: >68,000hrs (L90/B10)
– Optimum colour consistency – 2 step MacAdam ellipse tolerance
– 2000Kg static load
IP67 | IK10 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
LED output: 2335 – 3505lm
Luminaire output: 2101 – 3153lm
CRI: >80
Beam angle: 86°
Material
Body: Die-cast aluminium
Bezel: Stainless steel
Diffuser: 10mm hardened glass with silicone gaskets to ensure the integrity of the IP rating
External fixings: Stainless steel

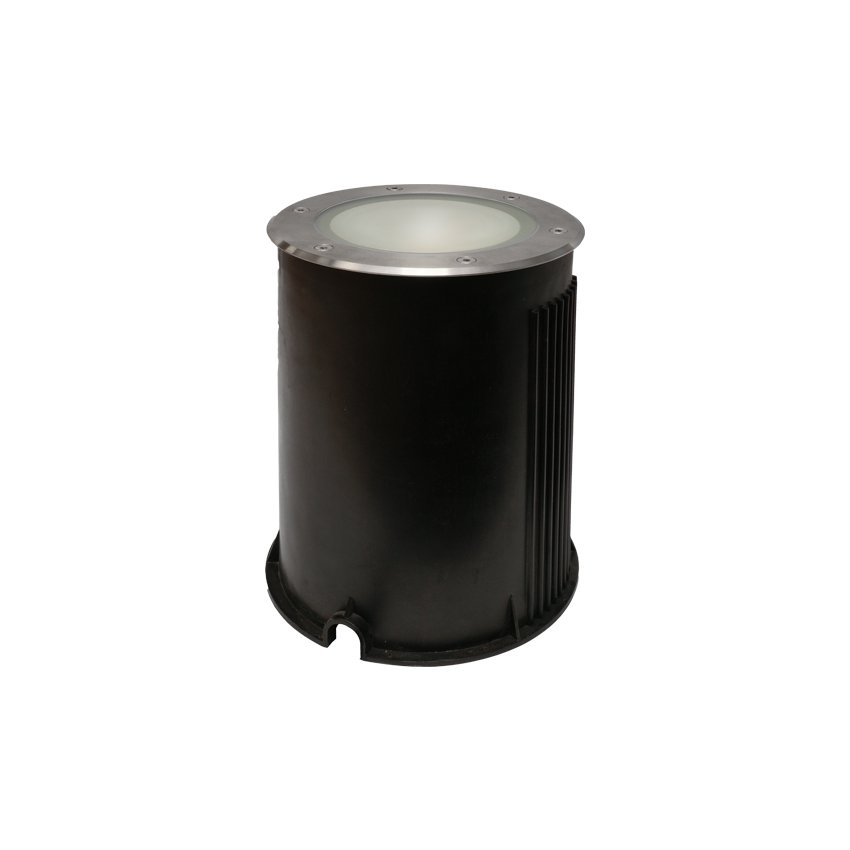

Mounting: Recessed (Installation housing supplied)
| Product Codes |
|---|
| LAMP | COLOUR TEMP | DELIVERED LUMENS | DIMENSIONS | STANDARD |
|---|---|---|---|---|
| 23W | 3000K | 1690lm | Ø220 x 300 | 70300101 |
| 23W | 4000K | 1799lm | Ø220 x 300 | 70300201 |
| 28W | 3000K | 2340lm | Ø220 x 300 | 70300301 |
| 28W | 4000K | 2520lm | Ø220 x 300 | 70300401 |
| 23W | 3000K | 1690lm | Ø270 x 360 | 70300501 |
| 23W | 4000K | 1799lm | Ø270 x 360 | 70300601 |
| 28W | 3000K | 2340lm | Ø270 x 360 | 70300701 |
| 28W | 4000K | 2520lm | Ø270 x 360 | 70300801 |
