Juke Linear LED
A highly efficient, linear in-ground LED luminaire available with multiple optics.

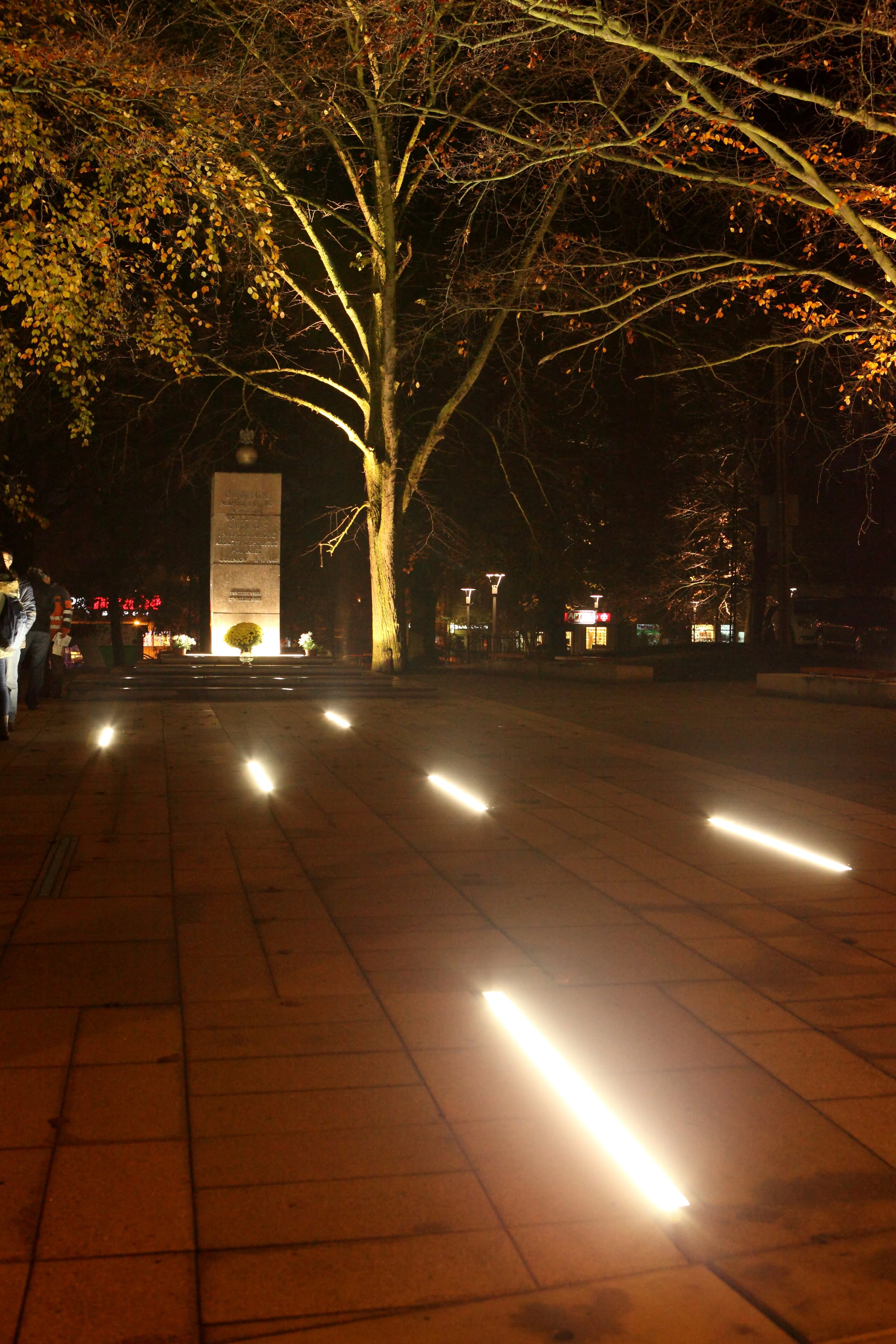

Ideal for illuminating parks, squares, entrances, gardens and pathways.
Features
– High resistance to oxidation
– Excellent thermal management
– Average rated LED life: >60,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
– 1000Kg static load
IP67 | IK10 | LED | CLASS I | CE
A highly efficient, linear in-ground LED luminaire available with multiple optics.
Ideal for illuminating parks, squares, entrances, gardens and pathways.
Features
– High resistance to oxidation
– Excellent thermal management
– Average rated LED life: >60,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
– 1000Kg static load
IP67 | IK10 | LED | CLASS I | CE
A highly efficient, linear in-ground LED luminaire available with multiple optics.
Ideal for illuminating parks, squares, entrances, gardens and pathways.
Features
– High resistance to oxidation
– Excellent thermal management
– Average rated LED life: >60,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
– 1000Kg static load
IP67 | IK10 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
LED output: 2203 – 4406lm
Luminaire output: 1313 - 2898lm (ASYM)
1871 - 4136lm (SYM)
CRI: >80
Material
Body: Aluminium profile treated to resist external conditions
Finish: Anthracite grey (RAL 7037)
Diffuser: 10mm hardened glass with high class silicone gaskets to ensure the integrity of the IP rating
External fixings: Stainless steel
Mounting: Recessed
Options
4000K
| Product Codes |
|---|
| LAMP | COLOUR TEMP | DELIVERED LUMENS | BEAM | DIMENSIONS | STANDARD |
|---|---|---|---|---|---|
| 16W | 3000K | 1868lm | Narrow | 643 x 120 | 70301201 |
| 16W | 3000K | 1950lm | Medium | 643 x 120 | 70301401 |
| 16W | 3000K | 2066lm | Wide | 643 x 120 | 70301601 |
| 21W | 3000K | 2877lm | Narrow | 962 x 120 | 70301801 |
| 21W | 3000K | 3002lm | Medium | 962 x 120 | 70302001 |
| 21W | 3000K | 3182lm | Wide | 962 x 120 | 70302201 |
| 32W | 3000K | 3737lm | Narrow | 1243 x 120 | 70302401 |
| 32W | 3000K | 3900lm | Medium | 1243 x 120 | 70302601 |
| 32W | 3000K | 3614lm | Wide | 1243 x 120 | 70302801 |
