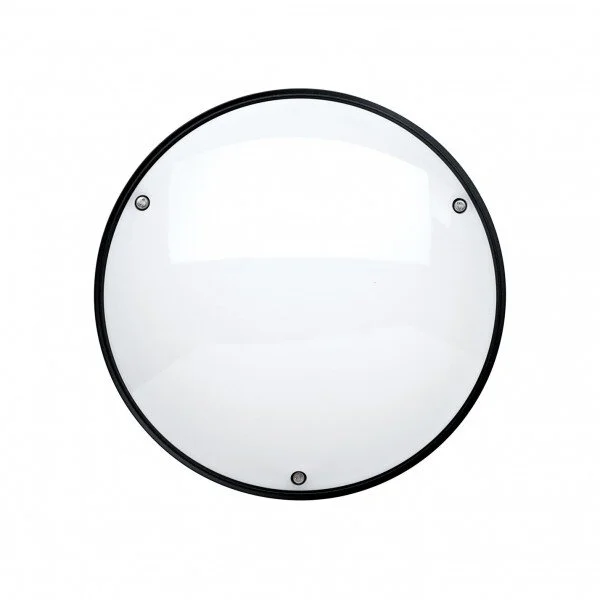

Rondo LED
An impact-resistant IP66 LED luminaire capable of withstanding severe vandalism. Ideal for public areas, housing blocks and entrances.
Features
– Robust design – non-corrosive and abrasion resistant
– Exceptionally high impact resistance: IK10+ / 120 joules
– Rip-out resistant skirt – capable of withstanding severe vandalism.
– Average 50,000h LED life (L80/B50) – no maintenance
– Optimum colour consistency—3 step MacAdam ellipse tolerance-> Photobiological hazard: RG0
IP66 | IK10 | LED | CLASS II | CE
An impact-resistant IP66 LED luminaire capable of withstanding severe vandalism. Ideal for public areas, housing blocks and entrances.
Features
– Robust design – non-corrosive and abrasion resistant
– Exceptionally high impact resistance: IK10+ / 120 joules
– Rip-out resistant skirt – capable of withstanding severe vandalism.
– Average 50,000h LED life (L80/B50) – no maintenance
– Optimum colour consistency—3 step MacAdam ellipse tolerance-> Photobiological hazard: RG0
IP66 | IK10 | LED | CLASS II | CE
An impact-resistant IP66 LED luminaire capable of withstanding severe vandalism. Ideal for public areas, housing blocks and entrances.
Features
– Robust design – non-corrosive and abrasion resistant
– Exceptionally high impact resistance: IK10+ / 120 joules
– Rip-out resistant skirt – capable of withstanding severe vandalism.
– Average 50,000h LED life (L80/B50) – no maintenance
– Optimum colour consistency—3 step MacAdam ellipse tolerance-> Photobiological hazard: RG0
IP66 | IK10 | LED | CLASS II | CE
| Technical Information |
|---|
Performance
Light source: LED
Luminaire output: 1500 – 2550lm
Luminaire efficiency: ≥121lm/W
CRI: >80
Material
Body: Die-cast aluminium, marine grade
Finish: White/ Grey/ Black
Diffuser: Opal polycarbonate
Mounting: Surface
Options
3hr emergency
Microwave sensor for enhanced energy savings
Bluetooth enabled
Flush mounted version
Slave version
| Product Codes |
|---|
| LAMP | COLOUR TEMP | DELIVERED LUMENS | STANDARD WHITE | STANDARD GREY | STANDARD BLACK | DALI WHITE | DALI GREY | DALI BLACK |
|---|---|---|---|---|---|---|---|---|
| 12W | 3000K | 1500lm | 43300101 | 43300301 | 43300501 | 43300103 | 43300303 | 43300503 |
| 12W | 4000K | 1550lm | 43300201 | 43300401 | 43300601 | 43300203 | 43300403 | 43300603 |
| 17W | 3000K | 2050lm | 43300701 | 43300901 | 43301101 | 43300703 | 43300903 | 43301103 |
| 17W | 4000K | 2150lm | 43300801 | 43301001 | 43301201 | 43300803 | 43301003 | 43301203 |
| 20W | 3000K | 2450lm | 43301301 | 43301501 | 43301701 | 43301303 | 43301503 | 43301703 |
| 20W | 4000K | 2550lm | 43301401 | 43301601 | 43301801 | 43301403 | 43301603 | 43301803 |
