Swallow LED

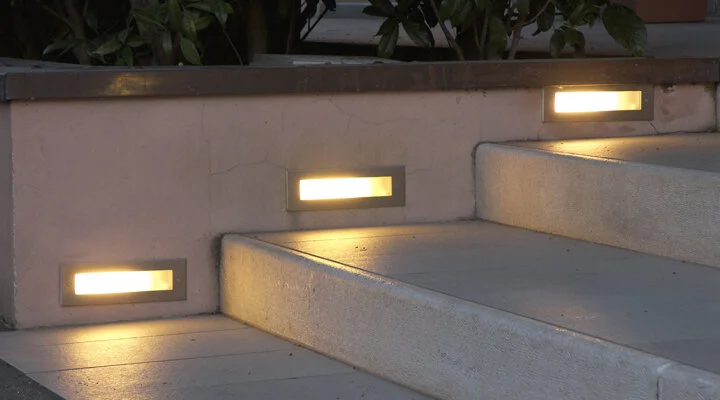

A compact, recessed wall luminaire ideal for pathways, driveways, entrances and similar applications.
Features
– High resistance to UV and oxidation
– Shock resistant glass diffuser
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
– Average rated LED life: >100,000hrs (L80/B10)
– Shallow recessing depth
IP66 | IK06 | LED | CLASS I | CE
A compact, recessed wall luminaire ideal for pathways, driveways, entrances and similar applications.
Features
– High resistance to UV and oxidation
– Shock resistant glass diffuser
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
– Average rated LED life: >100,000hrs (L80/B10)
– Shallow recessing depth
IP66 | IK06 | LED | CLASS I | CE
A compact, recessed wall luminaire ideal for pathways, driveways, entrances and similar applications.
Features
– High resistance to UV and oxidation
– Shock resistant glass diffuser
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
– Average rated LED life: >100,000hrs (L80/B10)
– Shallow recessing depth
IP66 | IK06 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
Distribution: Symmetric
LED output: 820 – 2140lm
Luminaire output: 222 – 912lm
CRI: >85
Material
Body: Die-cast aluminium EN AB 44100
Finish: Stainless steel A4-70
Diffuser: 5mm soda-lime tempered acid-etched glass with sealing gasket
External fixings: Stainless steel A4-70 treated with water repellent lubricating solution
Mounting: Recessed
Wiring: Double Ø10/14 mm silicone cable gland
Options
Grill option (6W only)
IP68 easy connector
| Product Codes |
|---|
| LAMP | COLOUR TEMP | DELIVERED LUMENS | DIMENSIONS | STANDARD | DALI |
|---|---|---|---|---|---|
| 6.2W | 3000K | 222lm | 259 x 84 | 74600101 | 74600103 |
| 6.2W | 4000K | 227lm | 259 x 84 | 74600201 | 74600203 |
| 13W | 3000K | 868lm | 350 x 176 | 74600301 | 74600303 |
| 13W | 4000K | 912lm | 350 x 176 | 74600401 | 74600403 |
